The person that provided this camera to the museum told us: "I bought it at an auction in Howard County, MD. The auctioneers are Gregory and Warfield. I think the auction was for many different people, businesses etc. in other words I couldn't give you a name of the person who was the previous owner. The camera says Channel 9 WETT"

WHAT CAN YOU TELL
US ABOUT WETT-TV?

There is also a tag that says: "RIKER" and appears to be a commercial nameplate of some sort. Any ideas?

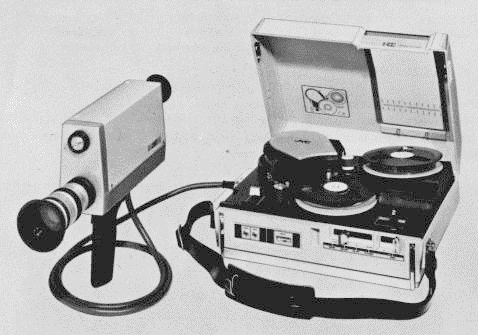

1970s era JVC PV-4500 B/W Portapack VTR and GS-4500 Camera.
.

This unit was VC's answer to the Sony Av-3400 and Avc-3400




SPECIFICATIONS FOR
JVC GS-4500 CAMERA

Horizontal frequency:1S.75kHz

Vertical frequency:60Hz

Scanning system: 2:1 interlace (sync signal from PV-4500)

Horizontal resolution : 420Iines

Signal-to-noise-ratio 43dB

Video signal output : 1.0Vp-p composite video signal

Video signal output impedance : 75 Ohms unbalanced

Audio signal output:-20-dB

Audio signal output impedance : 600 Ohms

Operating ambient temperature 32F-I05F

Object illumination:Standard300 lux or more

Still object 100 lux or more Automatic light control range ; 100 to 100,000 lux

Pick-up tube : 2/3inch separate mesh vidicon

Picture tube : 1.5 inch CAT

Standard lens 15 to 6Omm.1:4 zoom lens

Lens mount : 16mm (C mount)

Power requirement :12VDC

Power consumption : 7.2 W

Dimensions:10-3/16"(H)x2-718"(W)x14-3/16"(D)

Weight:5.5Ibs

Standard accessories : Zoom lens. Wind screen for Mic.

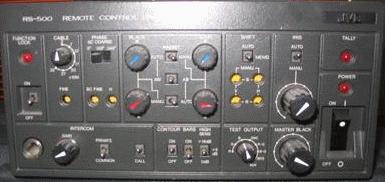

JVC KY-210 Camera and matching JVC RS-500 Remote Control Unit (CCU). - owned by swimmedia at one time.



Studio Finder






JVC KY-310




JVC-320


JVC KY-2000




JVC KY-2700

JVC camera KY-2700, in a studio configuration,  with monitor and electric zoom HZ-2100 U, and accessories, from government auction, used by NASA






JVC GX-S700







JVC MODEL BR-S410U VHS VIDEO RECORDER
JVC PROFESSIONAL VIDEO CAMERA JVC BY-110 WITH VF-110! VIEWFINDER! ZOOM

AC power adapter -AA-C11  + 2 BATTERY PACKS
THREE CABLES
 DIRECTIONAL MICROPHONE M-K50
MANUAL FOR CAMERA
MANUAL FOR POWER ADAPTER
MANUAL FOR MICROPHONE
MANUAL FOR VIEWFINDER
CASE FOR CAMERA



VCR Recorder JVC CR-6100U Professional Model






JVC'S VIDEOMOVIE LETTER KIT

SEND A VIDEO MOVIE VIA THE MAIL

KIT IS NEW IN ORIGINAL BOX.  TAPES ARE ALL SEALED.

VIDEOCASSETTE PLAYPACK KIT CONTAINS :

DEMO TAPE "HOW TO MAKE A VIDEO LETTER"

3 TC-20 VIDEOCASSETTE TAPES.

1 MAILING ENVELOPE

1 AA BATTERY

List price: $49.95 sticker still on the box


GR-C1
1984
GR-C1: World's first
single-unit video
camera launched





JVC GR-C1 - 1984.  First  VHS single-unit video camcorder.  This camcorder used Compact VHS  tape which JVC introduced in 1982.  This was the same tape as standard VHS and the same recording format, but in a cassette which was only 1/3 the size. This compact cassette could be inserted into in a full-sized VHS adaptor shell so that it could be played back in any VHS machine.  In this way, JVC achieved miniaturization without compromising compatibility with older equipment. Immortalized in the movie 'Back To The Future' (photo above on right), it is the original, definitive camcorder.

more at: http://www.totalrewind.org/



JVC GR-C1

ZENITH ( Really a JVC! )

Portable video cameras have made projectors and screens all but obsolete in most homes.


COMPACT VCR/CAMERA GOES ANYWHERE.

Zenith's Video Movie system, which combines a lightweight color video camera with a high-performance video cassette recorder, gives professional results in almost any situation. Take the Video Movie to the health club to record your racquetball match, then improve your game by studying your form at home.
The Video Movie weighs only five pounds.

Model VM6000

Zenith Electronics Corporation
1000 Milwaukee Avenue
Glenview, Illinois 60025

(312) 391-8181

0185 - VM


One of the many technological
revolutions being wrought upon
us is the replacement of the
8mm home movie camera and
projector with the video camcorder,
and the relegation of the former to
museums, along with Linotype
machines and buggy whips.

If you're in any doubt, just
look at the list of camcorder
players at the recent Winter
Consumer Electronics Show
in Las Vegas: Kodak, Polaroid,
Konica and Canon along
with Sony, Panasonic, Sanyo,
General Electric and a host
of others.








3-TUBE COLOR CAMERA LESS LENS
JVC  BY-110UCH




















==================BY110U SPECIFICATIONS==================

Optical system : f/1.4 three tube RGB prism
system

Focusing/deflection system : Electrostatic focus/electro-
magnetic deflection

Pickup tubes : 1/2" Saticon* (x3)

Encoder : NTSC (R-Y, B-Y)

Synchronizing system

Internal : Built-in SSG

External : Composite video or black burst
(via AC power adaptor or remote
control unit)

Lens : f/1.4 10X power zoom lens,
minimum object distance 1 m
(3.25 feet), with macro position

Sensitivity : f/2.8 at 2000 lux (186 fc)

Minimum illumination : f/1.4, 65 lux (70% video level)
(+12 dB switch ON)

S/N : 54dB (Contour correction OFF,
Gamma 1, Bandwidth 4.2 MHz)

Horizontal resolution : 600 lines (G ch center)

Registration

Zone 1 : Within 0.1% (circle 80% of
picture height)

Zone 2 : Within 0.4% (circle of picture
width)

Zone 3 : Within 0.8% (area outside Zone 2)

Geometric distortion : Within 2%

Input signals

Return video signal : VBS, 1.0 Vp-p, 75 ohms

Genlock signal : Composite video (VBS, 1.0 Vp-p,
75 ohms) or black burst (BB, 0.43
Vp-p, 75 ohms)

Microphone : -52dBm, 600 ohm unbalanced

Output signals

Composite video signal : 1.0 Vp-p, 75 ohm (14p connector)

Test signal : R, G, B, R-G, B-G, ENC

Audio signal : -20 dB unbalanced

Audio monitor signal : From video recorder used

VCR control signal : Contact or 4V supply
(switchable)

Contour Correction

Horizontal : Dual-edged

Vertical : 1H, single-edged

Optical filters : Closed, 3200K, 5600K,
5600K+25%ND

Gain Boost : 0 dB, +6 dB, +12 dB

Power requirement : +12V DC (10.5--15V), 1.05 A

Ambient temperature : -5 to +45 C (23 to 113 F)

Weight : 3.7 kg (8.2 lbs) including 1"
viewfinder

1" Viewfinder VF-110U
---------------------

CRT : 25 mm (1 inch) diagonal

Resolution : 350 TV lines

Provided circuits : Front tally lamp, video rec/
camera battery warning, record/
tally indication, video level
display.

Diopter : provided

Power requirement : 12V DC, 300 mA

Ambient temperature : -20 to +50 C (-4 to 122 F)

Weight : 400 g

Dimensions : 193(W) x 164(H) x 57(D) mm
(7-5/8" x 6-1/2" x 2-1/4")

4" Viewfinder VF-400
--------------------

CRT : (4 inches) diagonal

Resolution : more than 500 TV lines

Provided circuits : Tally lamps, peaking control

Pan/tilt mechanisms : Provided

Power requirement : 12V DC

Ambient Temperature : -20 to 50 C (-4 to 122 F)

AC Power Adaptor AA-C11U
------------------------

Power input : 120 V AC, 50/60 Hz

Output

Camera mode : +12V DC, 2.2 A

Charge mode : +12V to +16V DC, 2.2 A

Power consumption : 60 W

Compatible battery pack : DC-C11U

Ambient temperature

Camera mode : -20 to +50 C (-4 to 122 F)

Charge mode : +10 to +35 C (+50 to +95 F)

Charge indication : QUICK/TRICKLE

Charge time : Approx. 90 min. (quick charge)

Weight : 1.85 kg (4.1 lbs)

Battery Pack DC-C11U
--------------------

Type : Ni-Cad battery

Output : 12 V DC, 2.2 Ah

Overcharge sensor : Built-in

Remote Control Unit RS-110U
---------------------------

Output signals

Composite video signals : 1.0 Vp-p, 75 ohms, x 2

R/G/B signals : 0.7 Vp-p, 75 ohms, x 1 each
(by switching)

Intercom signal : 2-wire system, line -20 dBm,
600 ohm balanced

Input signals

Genlock signal : VBS 1.0 Vp-p, 75 ohm (loop-
thru output) or BB 0.43 Vp-p,
75 ohms (loop-through output)

AUX signal : VBS or VC, 1.0 Vp-p, 75 ohms,
(loop-thru output)

Intercom signal : 2-wire system, line -20 dBm,
600 ohm balanced

Tally signal : Make-contact or power supply
(5 to 24 V DC, or 6 V AC)

Power requirement : 120 V AC, 50/60 Hz

Ambient temperature : -10 to +45 C (+14 to 113 F)

Microphone M-K50U
-----------------

Type : Electret condenser

Sensitivity : -52 dB

S/N ratio : 50 dB

Frequency response : 70 to 16000 Hz

Output impedence : 600 ohms, balanced

Power requirement : 9 V DC (provided from camera)

Ambient temperature : -5 to +45 C (+23 to +113 F)

Weight : 270 g (0.6 lbs)

Design and specifications subject to change without notice.








Extremely compact, extremely light

Computer aided design and manufacturing techniques have made possible drastic reductions in size and weight without reducing performance and features. Strength and protection are provided by an aluminum diecast body. Total weight of the camera including lens and 1" viewfinder is only 3.7 kg (8.2 lbs). Low power consumption

Power consumption is a low 15.0 watts when the 1" viewfinder is used. When a fully-charged DC-C11U battery pack is used, the camera will operate for approximately 60 minutes at normal temperatures (about 77 F). The camera may be powered from a range of 10.5 to 15 DC volts. The BY-110U has a quick warm-up time and is stabilized sufficiently for normal use about 40 seconds after switching the power on. (Perfect stabilization will require 10 minutes or more.) Excellent picture quality

Three newly designed 1/2" Saticon (SM) tubes assure accurate color reproduction and 600 lines of horizontal resolution. The BY-110U has a superb signal to noise ratio of 54dB. The new 1/2" tubes (H9392) tubes were chosen because of their excellent reproduction quality and compact size. A fast f/1.4 glass prism assures superb resolution and accurate color separation. Wide range of automatic functions

- Auto-shift registration (auto centering) provides automatic adjustment of vertical and horizontal alignment (shift) of blue and red channels. Adjustment is accomplished by simply flipping a switch on the front panel. The circuit is digital, and registration data is stored in the camera's memory (battery back-up provided). - Auto white balance circuit. White color balance can be adjusted automatically by flipping a switch, or the camera can be operated in the "preset" position (3200K). White balance data is stored in the camera's memory circuit. - Auto black balance circuit. Flipping a switch automatically closes the iris and adjusts pedestal balance of the individual channels. - Auto beam control circuit...reduces comet tails in most cases. - Auto black level circuit. The ABL circuit offers sharp black images even when shooting outdoors under bright conditions. - Auto (servo) iris circuit. The iris responds quickly to objects with varied contrast and slowly for those with little contrast for natural automatic iris operation. A weighting detection circuit controls the video signal level of the upper part of the screen to optimize the overall brightness when the sky is very bright, etc. To protect the pickup tubes, the iris closes automatically when the OPERATE switch is off, or when the color bar switch is on. Extended life back-up battery

To retain the memory of the digital auto circuits, a back-up battery is employed. This allows the camera to retain its white balance, black balance, and auto-shift settings even when the power is turned off. A new long-life battery is utilized for this function and has a rated life of approximately 4 years. Access to the battery is on the underneath side of the camera. Excellent operability

Good human engineering went into the placement of switches and other camera controls. Switches are "touch coded" and some are protected from accidental mis-operation. The auto centering and auto white/black controls are located on the front panel behind a small door. A diopter is provided in the 1" electronic viewfinder for people who wear eyeglasses. An optional adjustable chest rest is available which improves stability and comfort. The chest rest, model KA-111, is similar to the one provided with the KY-310U cameras. "Hot shoe" connection system

To eliminate problems with cables an connectors, the camera head and its portable accessories are designed to connect together without the use of cables. Direct connection is provided for: - 10:1 zoom lens - 1" electronic viewfinder - M-K50U microphone - DC-C11U NiCad battery pack. When in operation, the only exposed cable is the VCR cable. This feature not only solves the usual problems associated with cables, it greatly enhances the appearance of the camera, giving it a very "solid" look. Genlock circuit

The BY-110U has built-in genlock facilities for locking up to other cameras in multi-camera operations. Instead of the usual genlock connector on the camera, to save space the genlock input and external power inputs are provided through the AA-C11U AC adaptor. Connection between the camera and AC adaptor is provided by the VCR cable (VC-511Bu-2). The BY-110U will lock to any stable composite video signal or black burst (B.B.). Built-in color bars

The BY-110U has a built-in full field color bar generator. Color bars are useful for checking and making adjustments to color monitors and they provide a consistent reference for checking the performance of the videocassette recorder. Gain boost for low light

The BY-110U has a +6dB and +12dB gain booster for operation in low light conditions. Also provided, is a level-depend circuit which adjusts the starting point of enhancement, according to the light level. Together, these circuits enable maximum low light performance with a minimum of noise in the picture. The minimum illumination required is 65 lux (70% video level) with +12dB of gain. Even at this light level, the picture is quiet, with well defined images and natural colors. ACCESSORIES ------------ 10:1 Servo Zoom lens (Included in basic package)

This new JVC designed lens is one key to the successful performance of the BY-110U. This special f/1.4 10X servo zoom is attached via a special mount, which includes electronic connections. Lens cables and cable problems are eliminated. Since the cameras are shipped from the factory with the lenses attached, each camera is "tweaked" to its own lens, resulting in more accurate, consistent performance. Because of the special requirements in using 1/2" pickup tubes, it was not practical to utilize the standard bayonet mount found on other prism cameras, since the lenses would not be interchangeable anyway. However, for convenience the lens supplied with the BY-110U is detachable. The lens includes a macro function for extreme close-ups. The following lens accessories are offered for added flexibility: * Wide angle conversion lens adaptor * Tele Conversion lens adaptor 1" Viewfinder VF-110U (included in basic package)

The small VF-110U viewfinder provides a sharp black & white image of more than 350 TV lines. It attaches directly to the camera head without cables, and has an adjustable eyepiece. A diopter (adjustment for people who wear eyeglasses) is provided. Brightness and contrast controls are on the side of the viewfinder, accessible to the camera operator. A red LED tally lamp is visible on the front of the VF-110U. Two LEDs are provided inside the viewfinder to give the cameraperson status information. AC adaptor/charger AA-C11U, battery pack DC-C11U

The BY-110U uses a newly designed snap-on NiCad battery pack, the DC-C11U. This battery has a power output of 2.2 AH at 12 V DC, and will power the camera for approximately 60 minutes when fully charged. The battery has a built-in overcharge sensor to prevent thermal damage caused by overcharging, and can be completely recharged in about 90 minutes, using the AA-C11U adaptor/charger. In addition to charging the battery, the AA-C11U is designed to power the BY-110U. Connection is made to the camera via the 14p--10p VCR cable. In addition to providing power to the camera, the AA-C11U has an input for the genlock signal. The power requirement for the AA-C11U is 120 VAC, 50/60 Hz. Microphone M-K50U

This super-directional microphone snaps directly onto the camera. It uses an electret condenser pickup element, and receives its 9V power supply from the camera. It can also be used with camera models KY-210U, KY-310U, KY-900U, & KY-950U. STUDIO CONFIGURATION -------------------- The BY-110U can be converted into a studio camera by adding the following options: 1. RS-110U Remote Control Unit 2. VF-450U 4.5" Viewfinder 3. HZ-ZS11U Zoom Servo Control 4. HZ-FM11U Focus Manual Control 5. VC-515U RCU Cable (65') 6. VC-516U Extension RCU Cable (65') RS-110U Remote Control Unit

The RS-110U fits into a standard EIA rack and is specially designed for use in studio systems with two or more cameras. Color matching between cameras and other control functions are available. R, G, and B signals can be output except during adjustment of R/B gain and master black level. Control functions: 1. Power on/off 2. Auto/manual iris mode setting 3. Manual iris control 4. SC Phase control 5. Auto white balance 6. Auto black balance 7. Auto/Manual white balance mode setting 8. Auto-shift registration 9. R/B gain control 10. Color bar/camera signal switching 11. Master black level control 12. Sensitivity switching 13. Cable length compensation


JVC BY-110U GIVES CONTINENTAL CABLEVISION CONFIDENCE

When you work for the largest cable system in the state, and the
6th largest in the entire country, you know you have every
reason to be proud. You can be proud of the consistency and
quality of your company. And you can be proud of your choice of
equipment.


Continental Cablevision is Michigan's number one cable
operator. When the company purchased nine BY-110U cameras for
both studio and on location shooting in its Dearborn
Heights/Westland system, the engineers had to feel confident
that the cameras they were buying would live up to the quality
that made them number one.

More For Less


Tom Pry is the program manager at Continental Cablevision
Dearborn Heights/Westland. He reports nothing but satisfaction
with the BY-110U. "Continental had been using a one-tube camera
for the public access gear. But when we realized our needs were
a bit more sophisticated, we looked for low-cost, yet durable
gear." The KY-1900U originally fit the bill. But, with the
emergence of the BY-110U, Pry seized an opportunity to get more
for less. "You definitely get more lines of resolution for less
money. We are very pleased with its performance," he says.
Only two of the nine BY-110Us are used for public access.
As for the others, two are used in the studio and five travel on
the road with a portable deck. Frequently, non-professionals
needing equipment for local access operate the cameras, but
because the BY-110Us have so many auto features, there is rarely
a problem.

Indecipherable Difference


Pry reports an anecdote that reassures him that the BY-110U
was the proper purchase. "During the taping of a local
basketball game, we genlocked the BY-110U against a camera that
sells at three times the JVC camera's price. Unless you knew
that different cameras were being used, you couldn't tell. You
really had to search carefully to detect any difference."
It's that kind of performance and the reliability that the
camera continues to function under all sorts of circumstances
that sold Pry on it. Bill Schripsema of Cruse Communications in
Lansing recommended the BY-110, knowing the extent of Pry's
responsibility and requirements. Pry's choice was well-thought
out.


Continental Cablevision is a coast-to-coast cable system
that celebrated signing its one millionth subscriber in March of
1985. The recent purchase of four California-based systems
moved Continental from #7 to #6 in national ranking. Each
system functions almost autonomously. Pry's division serves
Dearborn Heights and Westland, Michigan. But his cameras serve
many people, within and outside of Continental Cablevision. So
far, no one is complaining.




08-27-85
JVC BY-110U CAMERA IDEAL FOR
FILM TO VIDEO CONVERSION

For converting home movies, 8 mm, super 8, slides, etc. on to
videocassettes, Matrix Video Inc. of Inver Grove Heights, Minn., has found
the JVC BY-110U color camera to be ideal. The company has had the three-
tube camera since October, and has put thousands of hours on it without
needing to replace the tubes.

Avoiding Overkill
-----------------
According to Pete Ellingson, president of Matrix Video, "About 90
percent of our business is converting to video. We use the BY-110U on a
Buhl film chain and have had nothing but success with it. It's excellent
for maintaining picture and color quality."


Ellingson feels that this lightweight camera is well-suited for his
needs because his work is primarily industrial and in-house video. "We're
not broadcast," he says, "so too much sophistication is overkill." But the
BY-110U's resolution and faithful color reproduction are essential and its
longevity and low-cost increase its value even further.


Significantly, the BY-110U is equipped with a unique 10:1 lens that
works beautifully for Ellingson's purposes.


Matrix Video, Inc. does a great deal of film-to-video and slide-to-
video conversion, but also does out-of-house production and a small amount
of duplication.
